Eight door styles. Every size.
Shaker cabinets with solid wood face frames and plywood boxes. We assemble and install every box.
Painted or stained. Same price.

Shaker White
SWPainted finish. HDF frame and centre panel.

Shaker Grey
SGPainted finish. HDF frame and centre panel.

York White
YWPainted finish. HDF frame and centre panel.

Natural Shaker
NSStained finish. Solid birch frame, birch-veneer centre panel.

London Grey
LGStained finish. Solid birch frame, birch-veneer centre panel.

Graphite Shaker
GSStained finish. Solid birch frame, birch-veneer centre panel.

Shaker Charcoal
SCStained finish. Solid birch frame, birch-veneer centre panel.

Beech Espresso
BEStained finish. Solid birch frame, birch-veneer centre panel.
What every cabinet is made of.
How to read a cabinet code
B30Base cabinet, 30″ wideW3036Wall cabinet, 30″ wide × 36″ highW30122430″ × 12″ × 24″ deep: over the fridgeWP1890Pantry, 18″ wide × 90″ highV3021Vanity, 30″ wide × 21″ deep…GD · …L/RGlass door · left or right handBase cabinets
The cabinets under your countertop. Widths go up in 3-inch steps, so a run can be planned close to the wall without wide fillers.
Base cabinet
One drawer, one door
B12B15B18B21Base cabinet
One drawer, two doors
B24B27Base cabinet
Two drawers, two doors
B30B33B36B39B42Drawer base
Three drawers
DB12DB15DB18DB21DB24Large drawer base
Three drawers
DB27DB30DB33DB36Lazy Susan corner
Two lazy Susans
LS33LS36Blind corner
One drawer, one door
BBC39BBC42Sink base
Two tip-outs, two doors
SB30SB33SB36Corner sink base
One tip-out, one door
CSB36Microwave cabinet
One opening, one drawer
MDB24Tray base
One door
TB09Spice pull
One door, three spice racks
SP06SP09Base end cabinet
Two doors
BEC24Base end shelf
Three shelves
BES09Wall cabinets
Upper cabinets from 12" tall (over a fridge or range) to 42" uppers that run to an 8-foot ceiling. Fridge cabinets come 24" deep so they line up with the fridge front.
Wall cabinet, 12" high
One door
W0912W1212W1512W1812W2112Wall cabinet, 12" / 15" / 18" high
Two doors
W2412W2712W3012W3312W3612W3015W3315W3615W3018W3318W3618Wall cabinet, 21" / 24" high
Two doors
W3021W3321W3621W3024W3324W3624Wall cabinet, 30" / 36" / 42" high
One door
W0930W1230W1530W1830W2130W0936W1236W1536W1836W2136W0942W1242W1542W1842W2142Wall cabinet, 30" / 36" / 42" high
Two doors
W2430W2730W3030W3330W3630W2436W2736W3036W3336W3636W2442W2742W3042W3342W3642Fridge cabinet, 24" deep
12" or 15" high, two doors
W301224W331224W361224W301524W331524W361524Fridge cabinet, 24" deep
18" or 21" high, two doors
W301824W331824W361824W302124W332124W362124Fridge cabinet, 24" deep
24" high, two doors
W302424W332424W362424Glass-door wall cabinet, 12" high
One door
W0912GDCW1212GDCW1512GDCW1812GDCW2112GDCGlass-door wall cabinet, 12" high
Two doors
W2412GDCW2712GDCW3012GDCW3312GDCW3612GDCWall diagonal corner
24" or 27" wide, one door
WDC2412WDC2430WDC2436WDC2442WDC273615WDC274215Wall blind corner
One door
WBL2730WBL2736WBL2742Wall microwave cabinet
One shelf, two doors
WMC2430WMC2436WMC2442WMC3030WMC3036WMC3042Wall end cabinet
One door
WEC1230WEC1236WEC1242Wall end shelf
Three shelves
WES0930WES0936WES0942Tall cabinets
Pantries 84" to 96" tall, including versions with an opening for a built-in microwave or wall oven.
Wall pantry
Single door
WP1584WP1590WP1596WP1884WP1890WP1896Wall pantry
Double doors
WP2484WP2490WP2496WP3084WP3090WP3096Microwave wall pantry
One drawer, double doors
MWP278424MWP279024MWP279624Oven wall pantry
Three drawers, double doors
OC338424OC339024OC339624Storage & organization
Add-ons that make a cabinet work harder: roll-out trays, wine and glass racks, open shelves and a file drawer for a kitchen desk.
Roll-out tray
One tray
RD15RD18RD21RD24RD27RD30RD33RD36RD39RD42Floating shelf
One shelf
PNL1224PNL1230PNL1236PNL1242PNL1248PNL1254PNL1296File drawer
One drawer, single door
FD18Euro wine rack
6, 7 or 8 compartments
WRES0630WRES0636WRES0642Wine rack
10, 12 or 18 compartments
WR3018WR3618WR2430Glass rack
Holds 14 or 16 glasses
GR30GR36Knee drawer
One drawer
KD30Wood range hoods
Range hood covers in the same door finish as the cabinets, from a 30" hood front to a 48" four-panel hood.
Hood front
Two doors
RHF30RHF36Wood hood
Three panels
RHA30RHA36RHA42Wood hood
Four panels
RHA48Bathroom vanities
Vanities from the same range, so a bathroom can match the kitchen. All 21" deep, from a 24" sink base to a 60" double-sink vanity.
Vanity sink base
One tip-out, two doors
V2421V3021V3621Vanity drawer base
Three drawers
VDB1221(3)VDB1521(3)VDB1821(3)VDB2121(3)Sink combo, left
Two drawers, one door, one tip-out
VSD3021LVSD3621LSink combo, right
Two drawers, one door, one tip-out
VSD3021RVSD3621RSink combo, left, double door
Two drawers, two doors, one tip-out
VSD4221LSink combo, right, double door
Two drawers, two doors, one tip-out
VSD4221RSink combo, single sink
Six drawers, two doors, one tip-out
VSD4821VSD5421VSD6021Sink combo, double sink
Three drawers, four doors, two tip-outs
VCD6021Decorative & glass doors
Finished doors for exposed cabinet ends and pantry sides, and glass-front doors for display uppers.
Base decorative door
For an exposed base end
DDB30Wall decorative door
For an exposed wall end
DDW30DDW36DDW42Top pantry decorative door
15" wide
WP1584TDDWP1590TDDWP1596TDDTop pantry decorative door
18" wide
WP1884TDDWP1890TDDWP1896TDDTop pantry decorative door
24" wide
WP2484TDDWP2490TDDWP2496TDDTop pantry decorative door
30" wide
WP3084TDDWP3090TDDWP3096TDDBase pantry decorative door
15", 18", 24" or 30" wide
WP15XXBDDWP18XXBDDWP24XXBDDWP30XXBDDGlass door, 30" high
Wall cabinet glass door
W0930GDW1230GDW1830GDW2130GDW2430GDW2730GDW3030GDW3330GDW3630GDGlass door, 36" high
Wall cabinet glass door
W0936GDW1236GDW1836GDW2136GDW2436GDW2736GDW3036GDW3336GDW3636GDGlass door, 42" high
Wall cabinet glass door
W0942GDW1242GDW1842GDW2142GDW2442GDW2742GDW3042GDW3342GDW3642GDWall end glass door
For a wall end cabinet
WEC1230GDWEC1236GDWEC1242GDWall diagonal glass door
For a diagonal corner
WDC2430GDWDC2436WDC2442WDC273615GDWDC274215GDPanels & fillers
The finishing pieces that make cabinets look built in: appliance and end panels, finished sheets, and fillers that close the gap at a wall.
Dishwasher panel
24" deep, 3" return
DWR36Fridge panel
30" deep, 1.5" return
REP9630Finished skin panel
Finished both sides, edges unfinished
BP9636 1/4BP9648 1/2BP1296 1/2WS1224 1/4WS1242 1/4Finished plywood
3/4" thick, finished edges
FB2x8Base end panel
Finished replacement base side
BEPLBEPRWall end panel
Finished replacement wall side
WEP30WEP36WEP42Base filler
3/4" thick, 3" or 6" wide
BF3BF6Wall filler
3/4" thick, 3" or 6" wide
WF330WF336WF342WF630WF636WF642Tall filler
3/4" thick, 96" long
WF396WF696Mouldings
Crown, light rail, baseboard and toe kick in the cabinet finish. Every moulding comes in 96" lengths. Drawings show the profile end-on.
Top-mount crown
96" length
ACM2" crown moulding
96" length
CM24" crown moulding
96" length
CM46" crown moulding
96" length
CM6Chair rail
96" length
CRMLight rail moulding
96" length
TLROutside corner moulding
96" length
OCMScribe moulding
96" length
SMBaseboard moulding
96" length
BBMToe kick
96" length
TKValances, posts & corbels
Decorative pieces: a curved valance over a sink window, posts for the end of an island or peninsula, and corbels under an overhang.
Curved valance
3/4" thick
VAL36VAL45VAL54VAL65Shaker post
36" high
SSP3X36SSP4X36Classic post
36" high
SP3X36SP4X36Corbels
Two sizes
CB9CB13Handles by X-Calibur.
24 designs, from matte black to brushed brass.

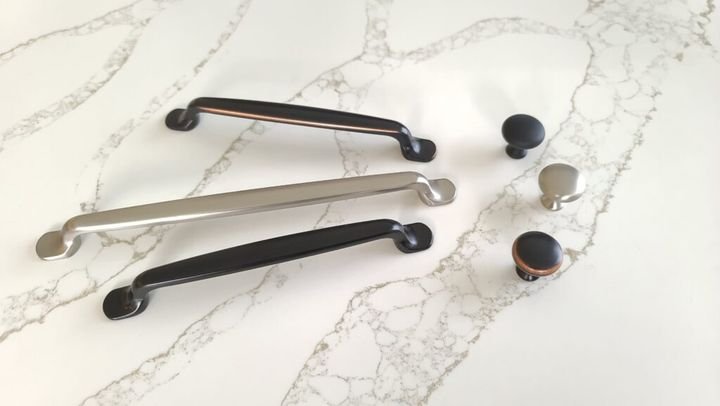

Americano
XC1009- Matte satin nickel
- Matte black
- Oil-rubbed bronze

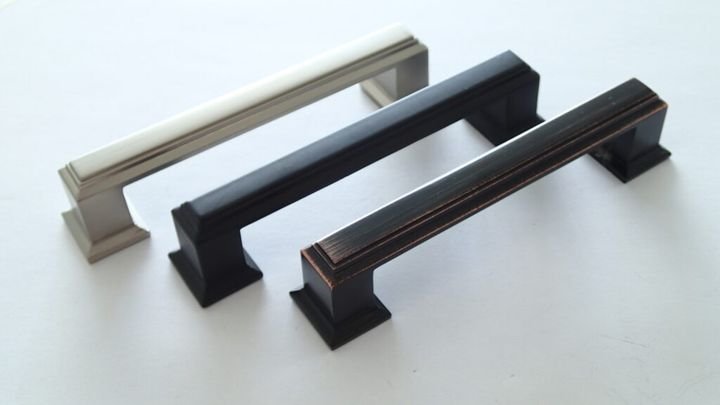

Athena
XC1010- Matte satin nickel
- Matte black
- Oil-rubbed bronze

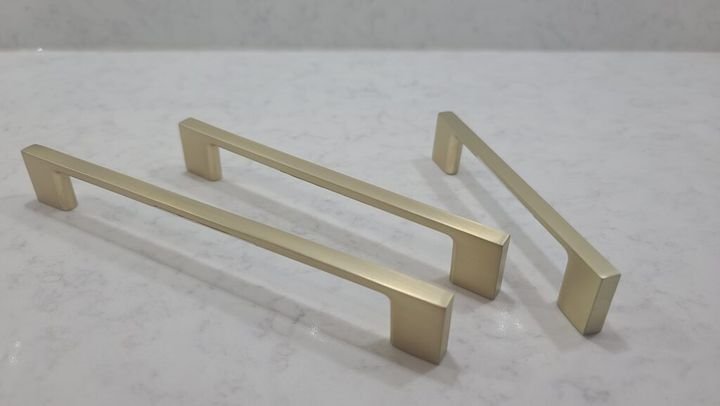

Bombay
XC1067- Brushed brass

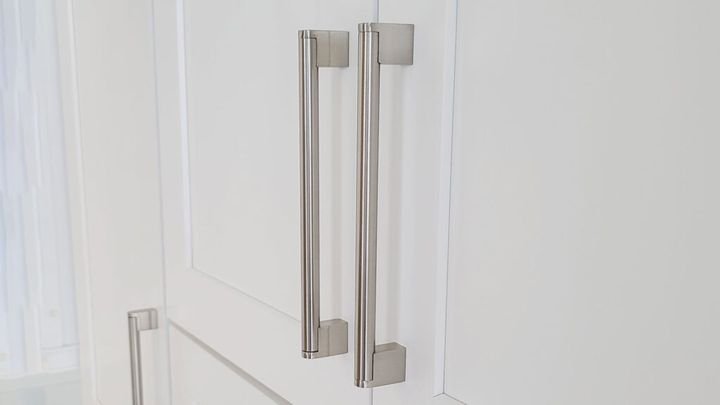

Boulder
XC1401- Brushed satin nickel

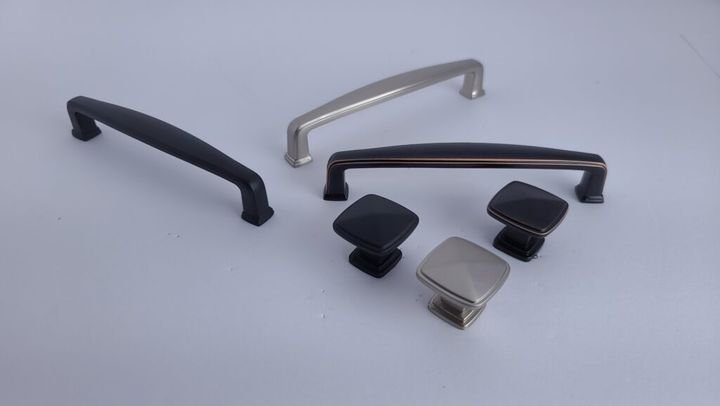

Cambridge
XC1048- Matte satin nickel
- Matte black
- Oil-rubbed bronze

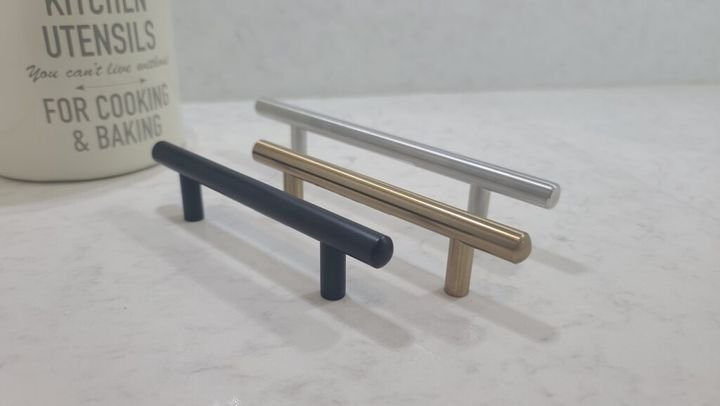

Cosmo
XC3041- 304 stainless steel
- Matte black
- Champagne gold

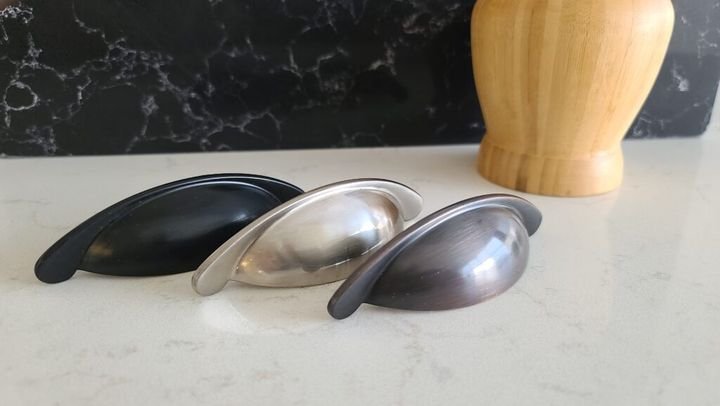

Dartmouth
XC3086- Brushed satin nickel
- Matte black
- Oil-rubbed bronze

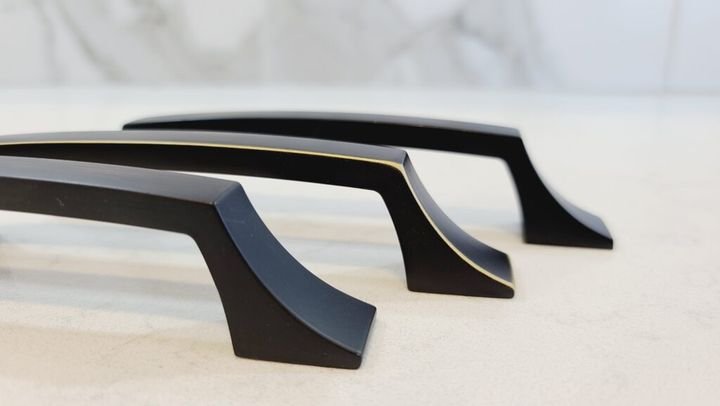

Edgehill
XC3407- Black antique bronze
- Matte black
- Oil-rubbed bronze

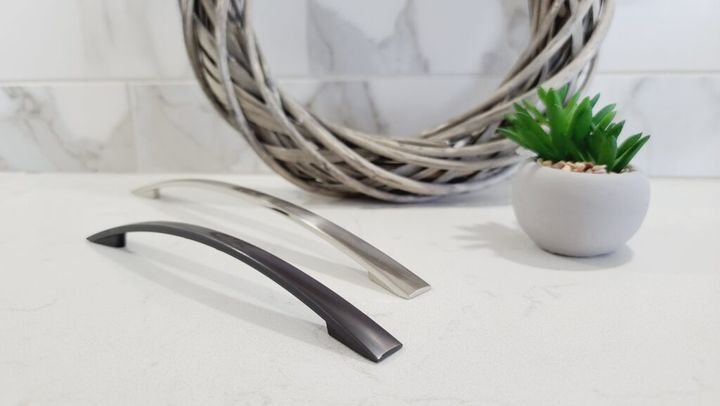

Flatiron
XC3073- Brushed satin nickel
- Oil-rubbed bronze

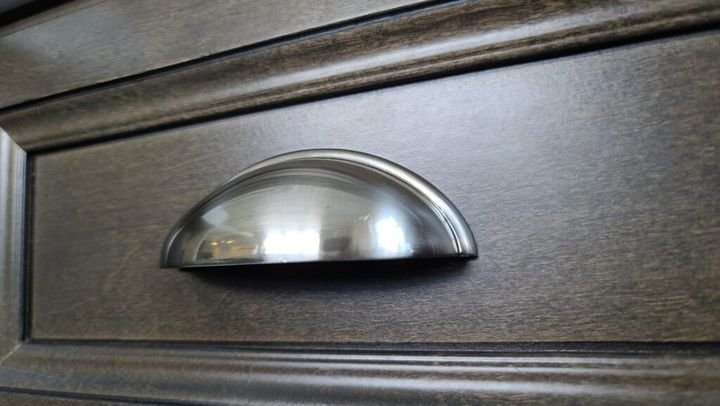

Harvard
XC3085- Brushed satin nickel
- Matte black
- Oil-rubbed bronze

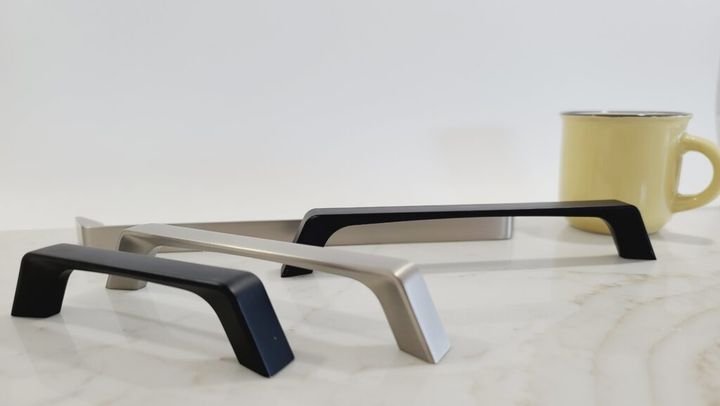

Helsinki
XC1021- Matte satin nickel
- Matte black

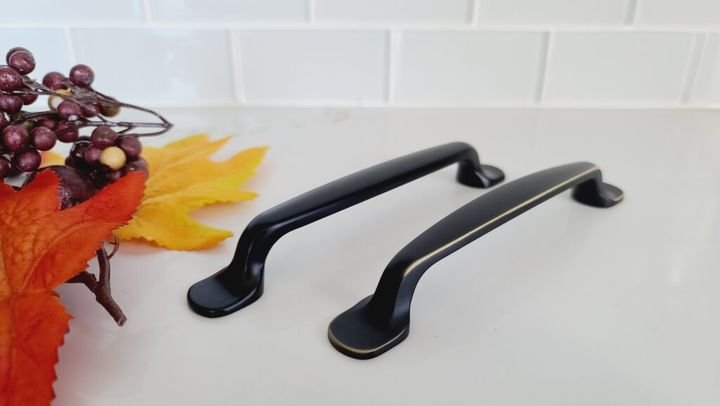

Huntington
XC3413- Black antique bronze
- Matte black

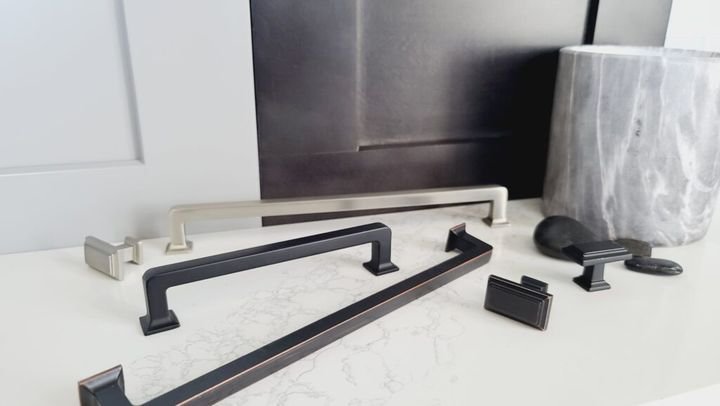

Manchester
XC1024- Matte satin nickel
- Matte black
- Oil-rubbed bronze

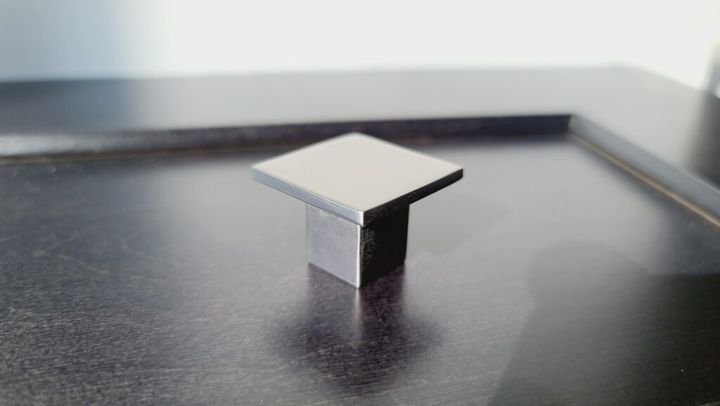

Manhattan
XC1767- Brushed satin nickel
- Oil-rubbed bronze

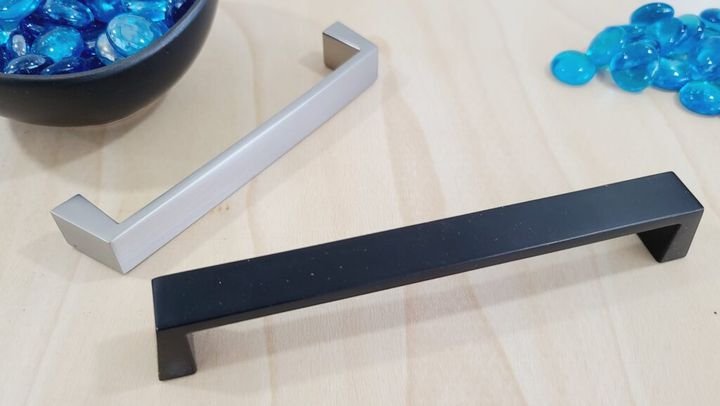

Minuet
XC2804- Matte satin nickel
- Matte black

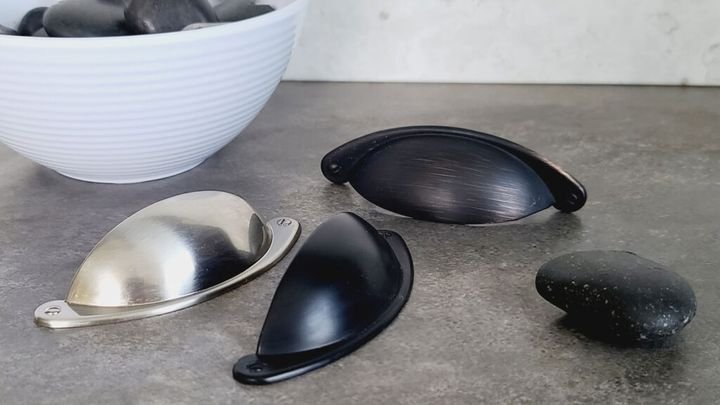

Newcastle
XC3083- Matte satin nickel
- Matte black
- Oil-rubbed bronze

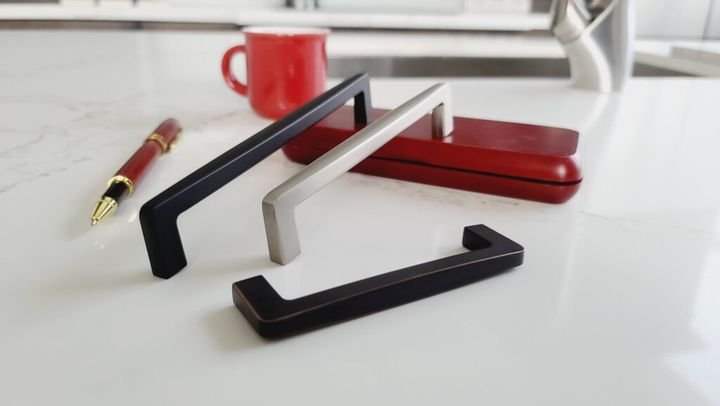

Oslo
XC1018- Matte satin nickel
- Matte black
- Oil-rubbed bronze

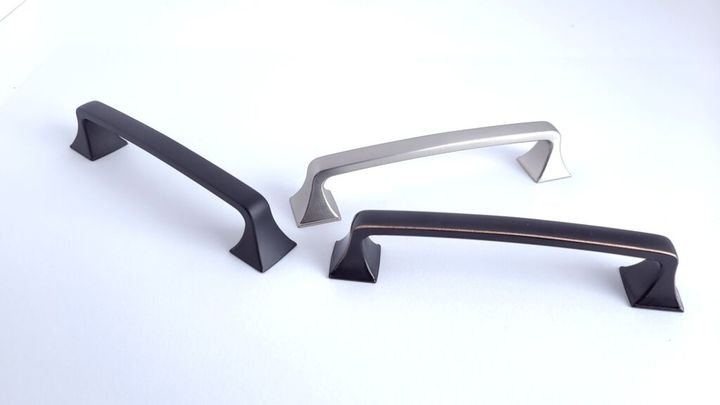

Oxford
XC1047- Matte satin nickel
- Matte black
- Oil-rubbed bronze

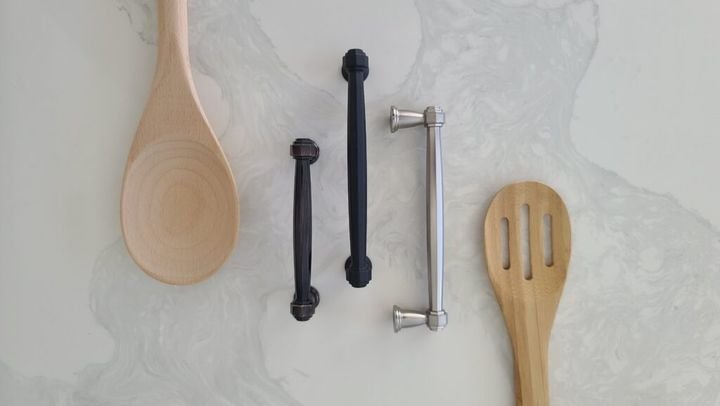

Parisienne
XC1041- Matte satin nickel
- Matte black
- Oil-rubbed bronze

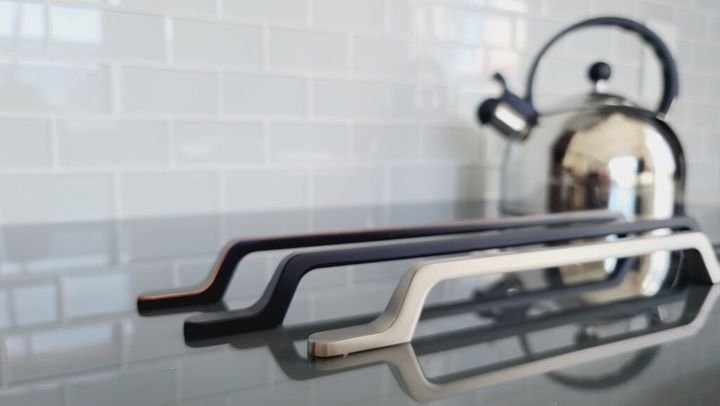

Soho
XC1026- Matte satin nickel
- Matte black
- Oil-rubbed bronze

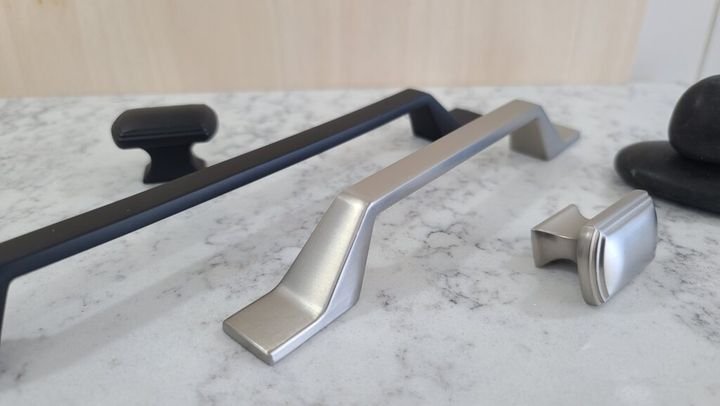

Spaniard
XC1020- Matte satin nickel
- Matte black
- Oil-rubbed bronze

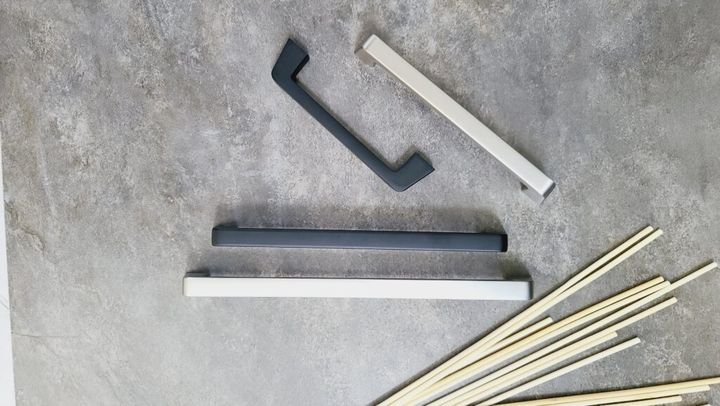

Stockholm
XC1015- Matte satin nickel
- Matte black

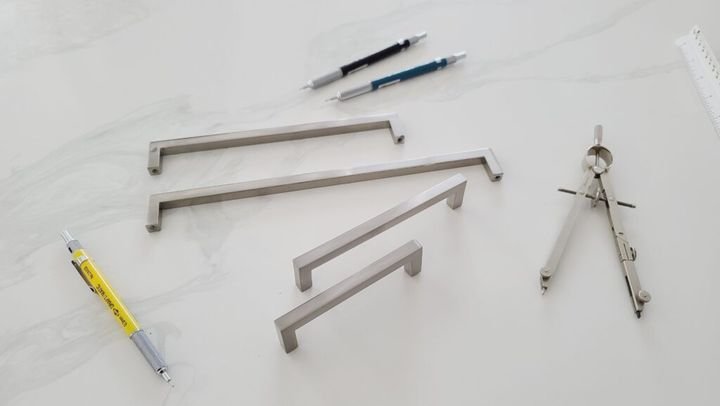

Structube
XC9551- Brushed satin nickel

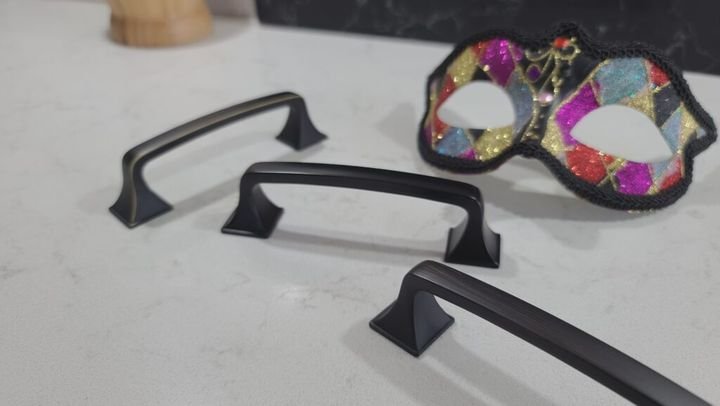

Venetian
XC3408- Black antique bronze
- Matte black
- Oil-rubbed bronze
Four steps. One fixed price.
Free visit
We measure and listen.
Fixed quote
Itemized. No surprises.
Clean build
Dust control, every day.
Walkthrough
We check every finish with you.
Cabinet questions.
How are the cabinets built?
Solid wood face frames, “AA” grade plywood boxes, dovetail drawers and five-piece mortise-and-tenon doors. We assemble every box ourselves before it goes on the wall, so nothing arrives at your home half-built.
What are the doors made of?
The three painted styles (Shaker White, Shaker Grey and York White) have an HDF frame and centre panel, which stays flat and takes a smooth painted finish. The five stained styles (Natural Shaker, London Grey, Graphite Shaker, Shaker Charcoal and Beech Espresso) have a solid birch frame and a birch-veneer centre panel.
Can I mix two door colours?
Yes. White uppers over a darker lower run or island is a popular pairing, and any two styles can be combined. The kitchen gallery has several two-tone kitchens.
Can my bathroom vanity match the kitchen?
Vanities come from the same range, so a bathroom can be done in the same door style as the kitchen. We renovate both, which makes a matching kitchen and bath one project instead of two.
What warranty comes with the cabinets?
Canada Kitchens backs the hinges and drawer glides with a limited lifetime hardware warranty: if they stop working properly, they are exchanged at no charge. We'll give you the full terms with your quote.
How much do the cabinets cost?
It depends on the layout, the door style and how many drawers and accessories you choose, so we price from your room's measurements. Our 2026 kitchen cost guide shows where cabinets sit in a full renovation budget.
Ready when you are.
Free in-home consultation. Fixed price, in writing.
